HSM-80
on
Solas Series Heat Recovery Ventilator
Solas™ H Series – HRV with PSC Motors
Model: HSM-80
- High efficiency energy saving permanently lubricated variable speed PSC motors for air balancing
- Tilted core design for maximum efficiency
- Constructed using UL certified sound insulation. The Quietest in its class
- Military Grade Constructed using heavy gauge steel, welded joints, individually powder coated
- Exhaust up to 110 CFM
- Continuous fresh air supply up to 20-70 CFM

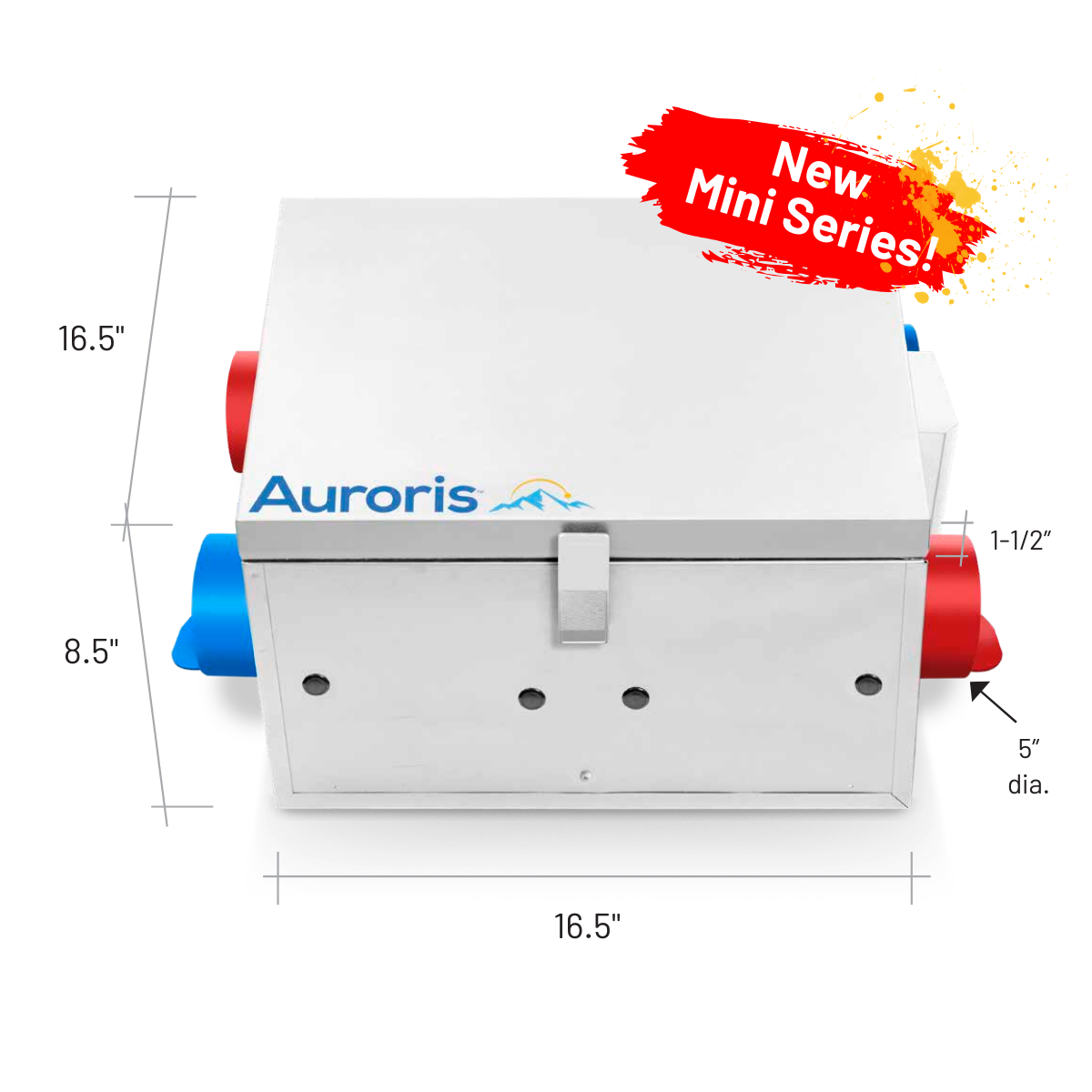

- Over all size 16.5” (W) x 16.5” (D) x 8.5” (H)
- Power ratings: 115V / 1 / 60 Hz, 0.75 Amp.,Standby current is 2W only
- Automatic fan cycled defrost
- Optional motorized spring return damper in case of power failure.
- Washable Polypropylene core and Filters
- Furnace / Fan-coil / Heat Pump Interlock
- Dual Failsafe Protection
- Horizontal & Vertical Installation
- Meets All Standards and Building Code Requirements
- Weight approximately 20 lbs.
- SMART IAQ™ Enabled
- 5 Year Limited Warranty
Brochure | Spec Sheet | Manual
Description
QUALITY AND PERFORMANCE CONVERGE
Innovative Engineering and design facilitate two separate functions: HRV or ERV
Unique tilted core design provides maximum drainage to maintain the Highest Efficiency.
Low profile design for Maximum Space Efficiency.
Advanced Sound Reduction Engineering makes Solas™ among the Quietest in the industry.
Advanced fan cycle defrost ensures Flawless Performance.
Solas™, the logical choice for Quality and Performance.
