HSHO-500
on
Solas Series Heat Recovery Ventilator
Solas™ HO Series – HRV with PSC Motors
Model: HSHO-500
- High Efficiency Permanently Lubricated Variable Speed (PSC) Motors
- Tilted core design for maximum efficiency
- Constructed using UL-certified sound insulation. The Quietest in its class
- Military Grade Specification: constructed using heavy-gauge steel, welded joints, individually powder-coated.

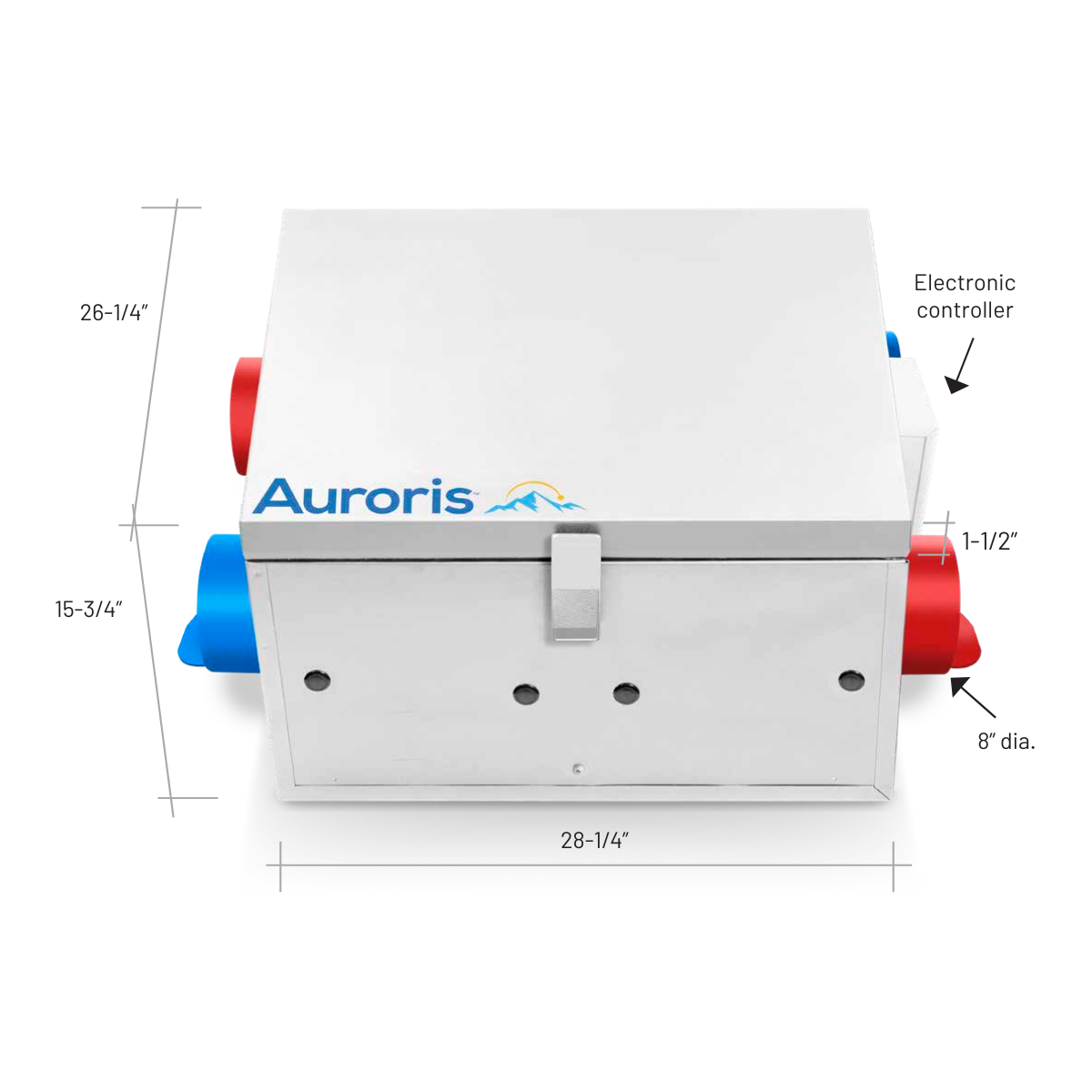

- Over all size 28.25” (W) x 26.25” (D) x 15.75 ” (H)
- Power ratings: 115V / 1 / 60 Hz, 5.2 Amp., Standby current is 7W only
- Washable Polypropylene Core and MERV - 3/4 Filters
- Drainless Design
- High efficiency energy-saving permanently lubricated variable speed PSC motors for air balancing
- Suitable for horizontal & vertical installation
- Exhaust up to four washrooms
- Suitable for Corridor
- Two Speed exhaust (High / Low) - up to 500 CFM maximum
- Continuous fresh air supply at Normal speed up to 500 CFM
- Furnace / Fan-coil / Heat Pump Interlock
- Dual Power Failure / Freeze Protection
- Weighs approximately 100 lbs.
- Meets All LEED Standards and Building Code Requirements
- SMART IAQTM Enabled
- 5 Year Limited Warranty
Brochure | Spec Sheet | Manual
Description
QUALITY AND PERFORMANCE CONVERGE
Innovative Engineering and design facilitate two separate functions: HRV or ERV
Unique tilted core design provides maximum drainage to maintain the Highest Efficiency.
Low profile design for Maximum Space Efficiency.
Advanced Sound Reduction Engineering makes Solas™ among the Quietest in the industry.
Advanced fan cycle defrost ensures Flawless Performance.
Solas™, the logical choice for Quality and Performance.
Accessories
